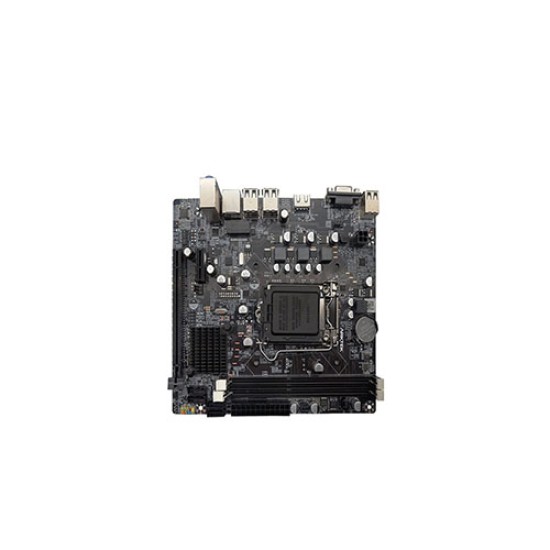

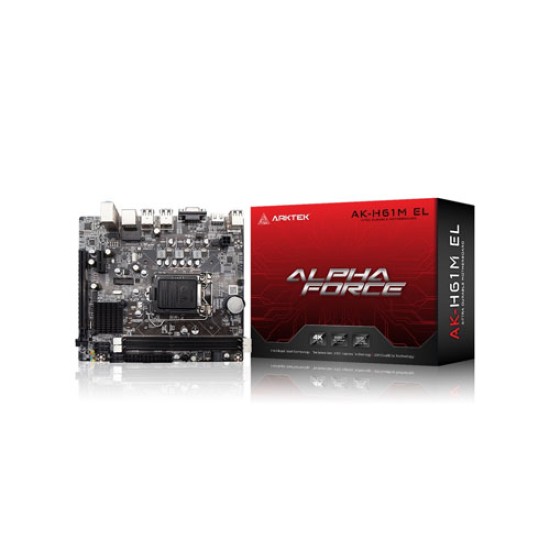

ARKTEK AK-H61M EL Micro-ATX Motherboard
The ARKTEK AK-H61M EL is a Micro-ATX form factor motherboard designed for use with Intel Socket 1155 CPUs. It is based on the Intel H61 chipset and supports up to 16GB of DDR3 RAM in dual-channel configuration. The AK-H61M EL features one PCIe 3.0 x16 slot for a discrete graphics card, as well as one PCIe 2.0 x1 slot and one PCI slot for expansion cards. It also has four SATA 3.0 Gb/s ports for storage devices. On the back panel, the AK-H61M EL offers four USB 2.0 ports, two USB 3.0 ports, a PS/2 keyboard/mouse port, a LAN port, and three audio jacks for microphone, line-in, and line-out. The board also includes a TPM header for enhanced system security. The AK-H61M EL supports Intel Turbo Boost Technology and Intel Hyper-Threading Technology, as well as Intel Quick Sync Video for faster video encoding and decoding. It also features Intel Virtualization Technology for directed I/O (VT-d), which allows virtual machines to access hardware directly, and Intel Virtualization Technology (VT-x), which allows multiple operating systems to run on the same machine.
Overall, the ARKTEK AK-H61M EL is a budget-friendly motherboard with basic features suitable for home and office use.
Features
The ARKTEK AK-H61M EL Micro-ATX Motherboard has the following features:
- Socket Type: LGA 1155 socket for Intel processors
- Chipset: Intel H61 Express Chipset
- Memory: 2x DIMM slots supporting up to 16GB DDR3 memory in dual-channel mode
- Expansion Slots: 1x PCIe 3.0 x16 slot, 1x PCIe 2.0 x1 slot, and 1x PCI slot
- Storage: 4x SATA 3.0 Gb/s connectors for storage devices
- USB Ports: 2x USB 3.0 ports and 4x USB 2.0 ports on the rear panel
- Audio: 3x audio jacks for microphone, line-in, and line-out
- LAN: 1x 10/100/1000 Mbps Gigabit Ethernet RJ-45 LAN port
- TPM header: for enhanced system security
- Intel Turbo Boost Technology, Intel Hyper-Threading Technology, and Intel Quick Sync Video
- Intel Virtualization Technology for directed I/O (VT-d) and Intel Virtualization Technology (VT-x)
Overall, the ARKTEK AK-H61M EL Micro-ATX Motherboard is designed to provide basic features suitable for home and office use, with support for Intel processors and a variety of hardware and software technologies to enhance system performance and security.
